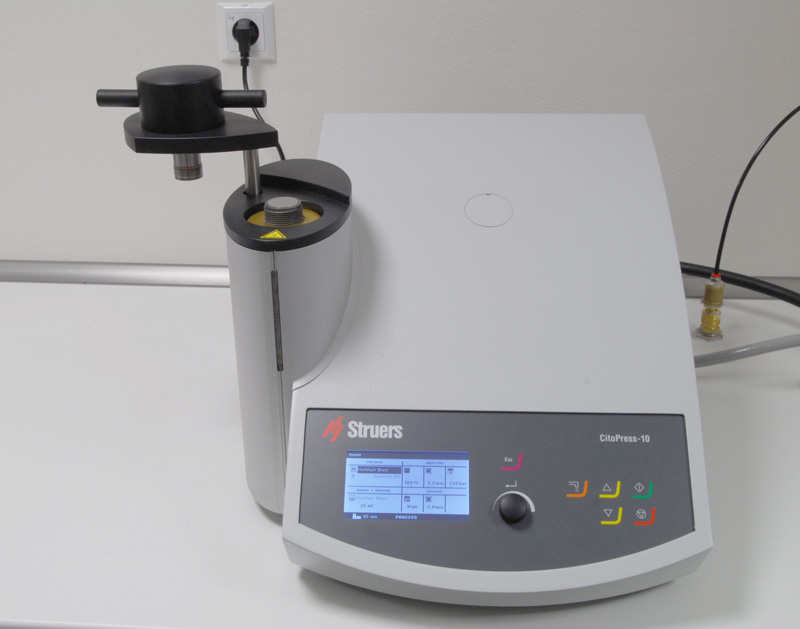

Electro-hydraulic programmable machine for hot mounting (pressing). Citopress 10 contains a database of preloaded methods which provides mounting informations. Programmable temperature is in the range of 80 – 180°C. The machine features a LCD display, which graphically shows parameter settings and mounting progress. Changing parameters is provided by using the turn/push button.
| Mounting unit diameter | 30 mm |
|---|---|
| Mounting pressure | 50 – 350 bar, in steps of 25 bar |
| Heating temperature | 80 – 180°C, in steps of 5°C |
| Heating time | 1 – 15 minutes |
| Cooling time | 1 – 15 minutes |
| Selectable cooling water flows | High: 4.8 l / min, Medium: 0.96 l / min, Low: 0.14 l / min |
| PolyFast | for fast mounting and for examination in a SEM |
|---|---|
| ClaroFast | for achieving a transparent mount with a clear view to all details |
| LevoFast | for achieving an excellent egde-retention for soft to medium hard materials |
| MultiFast | for routine examination of soft to medium hard materials |
| DuroFast | for achieving an excellent edge-retention when preparing hard materials |
